Pau Claris 165.

Ventilated façade in the Eixample

Location: Barcelona, Spain
Year: 2022 · 2023
Type: Office façade
Area: 430 m²
Role: Senior Architect
Company: Disset

The project

The renovation of an office façade in the Eixample: new window systems and ventilated ceramic cladding, resolved from the detail to the whole.

The project was the renovation of the building's main façade, renewing both its appearance and its performance. The new high-performance window systems improve energy efficiency and indoor comfort alike.

The intervention keeps a balance between preserving the character of the building and introducing current solutions, with a result that is in dialogue with its urban setting in Barcelona.

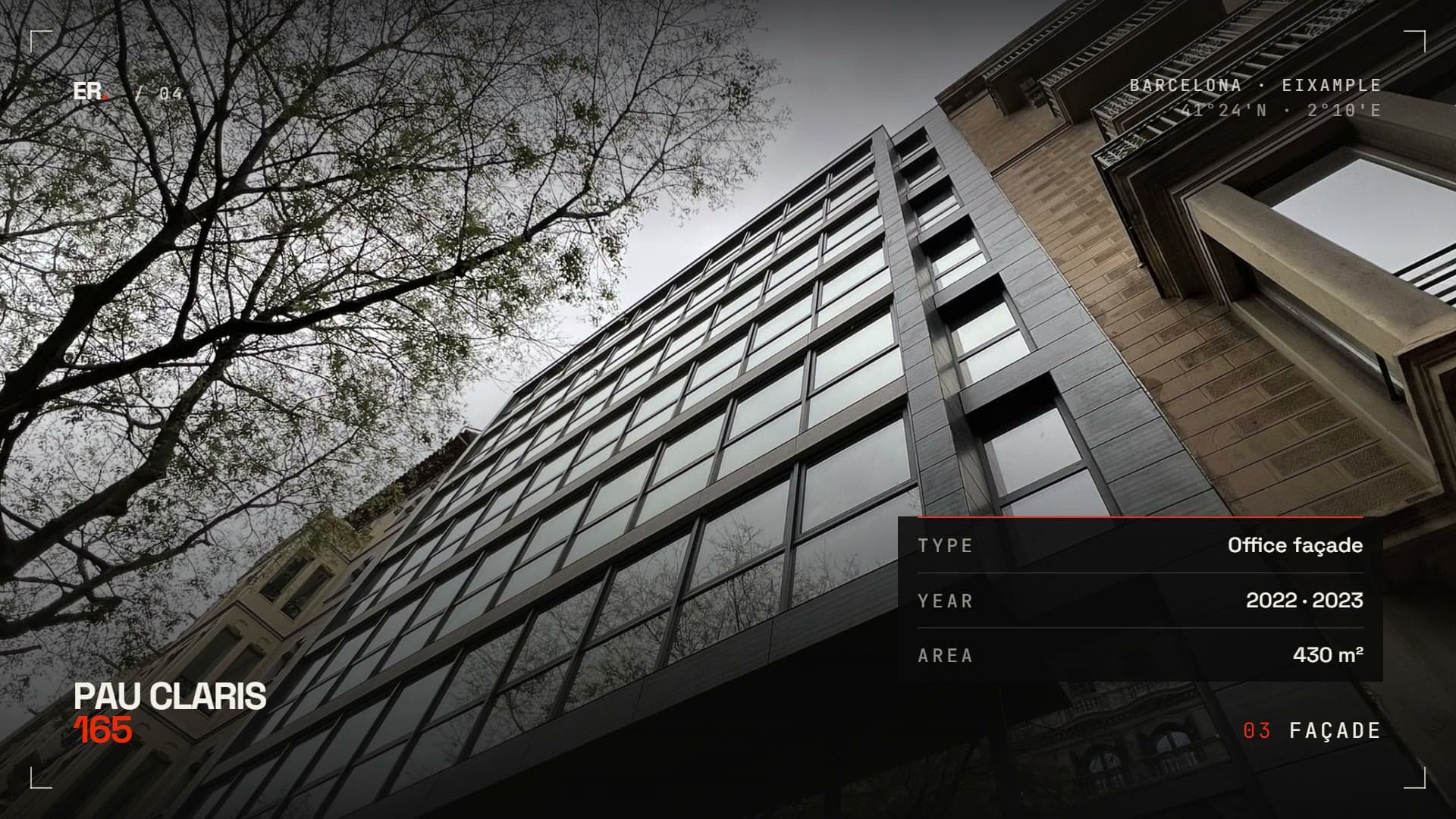

01Ventilated ceramic façade
02High-performance window systems
03Construction details
04Site monitoring

[01] · The façade

The drawing and the street.

The elevation arranges the façade in bands: glazing, ceramic spandrel, glazing. The photograph, taken from the pavement opposite, shows the same rhythm as built.

General elevation of the Pau Claris 165 façade — General elevation

The façade of Pau Claris 165 seen head-on from the street — The façade, from the street

[02] · On site

Glass, profile and ceramic.

The façade seen from below, with the neighbouring building alongside — The junction with the neighbouring building

The entrance to the building during the works — The entrance, during the works

The façade glazing reflecting the street trees — Glazing and reflections

[03] · The terrace

The envelope carries on at the top.

Continuous glazing and ceramic cladding on the terrace — Continuous glazing and cladding

The terrace in perspective, with the top capping not yet fitted — The capping, half fitted

[04] · Details

The junctions that build it.

The detail shows how the profiles, the glass, the cladding and the floor slab relate to one another. The ceramic is fixed to a subframe of profiles (KeraTwin K20 system).

Vertical detail DV-02: junction between the window system and the floor slab — Vertical detail DV-02

Vertical detail DV-05: junction with the floor slab — Vertical detail DV-05

Horizontal detail DH-01 of the window system — Horizontal detail DH-01

Fixing system for the ceramic tiles — Fixing the ceramic

The ceramic tiles set vertically — Tiles set vertically
